Defem mesh trays - Flexibility with endless opportunities
Robust, easy-to-install mesh trays with impressive capacity and quality. A flexible system that requires few components and tools to make a neat installation, but which also has many smart accessories that make it easy to adapt to any environment.
Every construction needs a strong backbone
Defem mesh trays provide reliable and safe transport of power, data and control cables to every corner of the building. A solution that is strong and flexible, and that is suitable for both large-scale applications as well as smaller installations thanks to its simplicity: Defem is suitable for office environments and data centers, as well as the food and beverage industry, and offshore wind turbines.
Features & benefits
→ Easy to shape. Easy to install, even in narrow spaces.
→ A wide range of dimensions and models.
→ Surface treatments for all types of environments.
→ Suspension system for ceilings, walls and floors.
→ Many smart accessories that make the installation process easy.
→ Specially adapted range for environments with high hygiene requirements.
→ Quick screwless installation together with the CLX3 click-to-install system.
→ Easy to combine with other systems, for example, Wibe cable ladders and cable trays.
Need support with your next project?
Our project sales team is here to help – contact us today.
A wide range of dimensions
Mini mesh trays
The mini mesh trays offer the fastest way to route all types of small cables. The Mini mesh B30-D also provides an excellent protection of impact to cables in tough environments.
C and G mesh trays
Provides good access and protection to the cables. For wall mounting. in the ceiling, on a cable ladder, under a desk, etc.
Z mesh trays
Excellent protection for the cables. The cables are "sewn" into the zigzag pattern of the wire ladder, which means that they can lie loose despite high-pressure washing. Developed for the food industry and other environments with strict hygiene requirements.
Standard height mesh trays
Height 45-60 mm
Width 53-622 mm
Length: 2500 mm
High mesh trays
For heavier installations
Height: 110 mm
Width: 120-622 mm
Length: 2500 mm
Mesh trays for all types of environments and corrosivity classes
The Defem range covers corrosivity class C1 to CX. From dry, heated indoor environments (C1), through industrial environments and harsh outdoor environments (C4) to heavy industry and offshore applications (CX).
Read more
Defem solutions
Defem for solar installations
Mesh trays are the preferred solution for cable management in solar panel setups. Defem offers versatile mounting options for both ground installations and the most common roof types—ensuring secure, efficient, and reliable cable support wherever you need it.
Defem for data centers
Miles of cables, perfectly organized – no tangles, no mess.
In data centers, Defem mesh trays are often used alongside cable trays in white space installations for added flexibility and performance. Their open structure enhances airflow, helping prevent cable overheating. With rounded edges and smooth, strong welds, Defem mesh trays protect both cables and hands—ensuring safe, efficient, and reliable installations.
Defem for the food & beverage industry
High-pressure cleaning? No problem. Defem mesh trays are built to meet the strictest sanitary standards—keeping cables secure and hygienic even in the most demanding environments.
The smart design of our Z-shaped mesh trays ensures excellent cable protection and easy access. Smooth, high-quality welds with no cavities prevent the buildup of unwanted substances, supporting a clean and compliant installation.
Key Benefits:
→ AISI 316L stainless steel resists high-pressure washing and harsh cleaning agents
→ Cables are “sewn” into the wire steps, staying securely in place—even when loose
→ Provides superior cable protection and hygiene
→ Specialized brackets designed specifically for food & beverage applications
Defem for wind energy
Trusted in wind turbines worldwide—onshore and offshore.
Defem’s durable, high-quality mesh trays are a key component in cable management for wind turbines. They’re primarily used in the nacelle, but also in the tower, where space is limited and reliability is critical. Our long-standing partnerships with leading wind turbine manufacturers are built on the ease of installation in tight spaces and the strength of Defem’s precision welding.

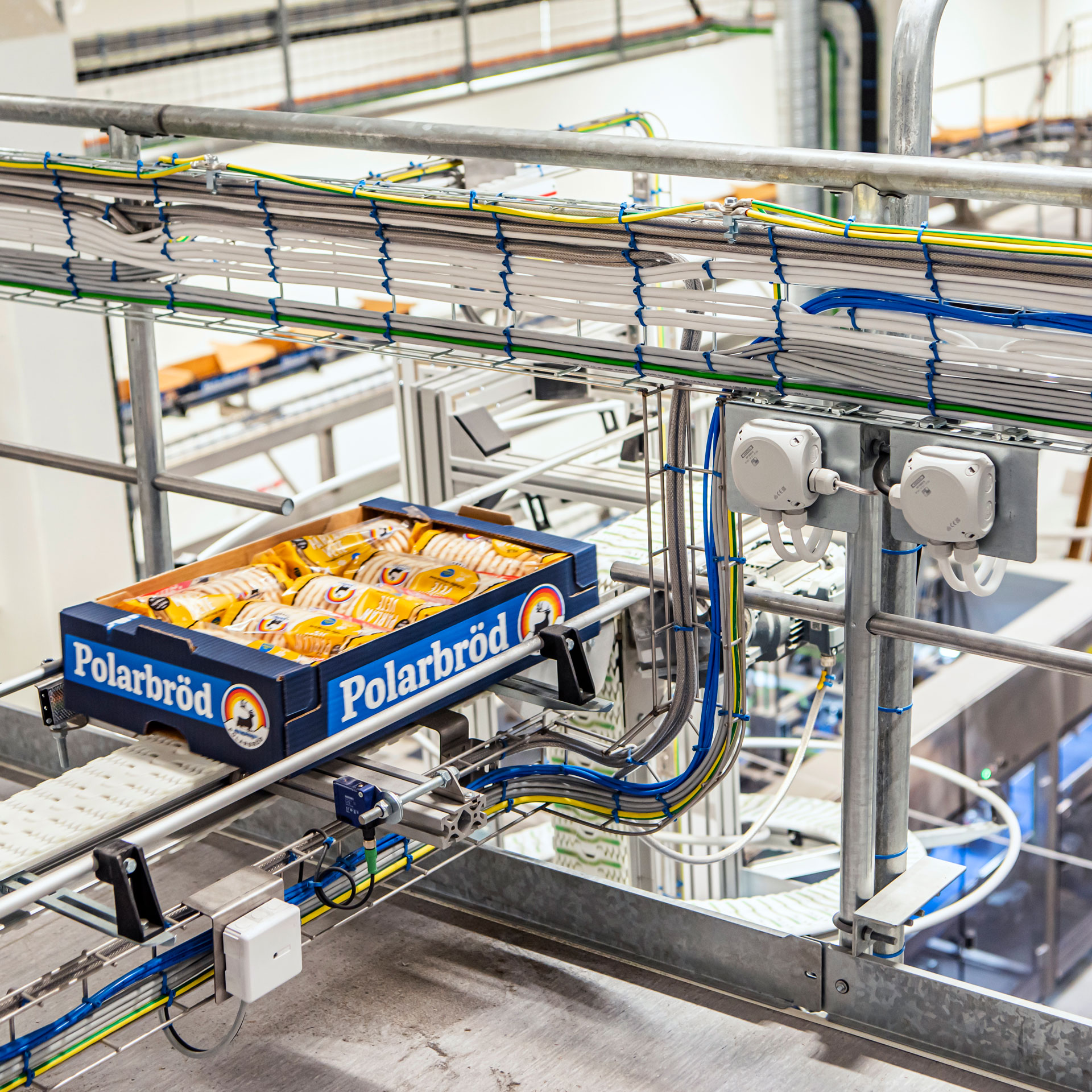

Customer case: Defem mesh trays - a part in Polarbröd's fast reconstruction of the bakery
Late in the evening on Sunday, August 23 2020, a fire broke out in Polarbröd's large bakery in Älvsbyn. Wibe Group delivered Defem mesh trays and Wibe cable ladders for the reconstruction of the bakery, which was rebuilt in record time.
Let's start our journey together
Every great project starts with a simple step—getting in touch. Whether you’re ready to start a project or need help calculating the details, we’re here to guide you every step of the way.
Need support with your project?
Our project sales team is here to help – contact us today.
Get in touch
